VFX chrome ball use

Overview

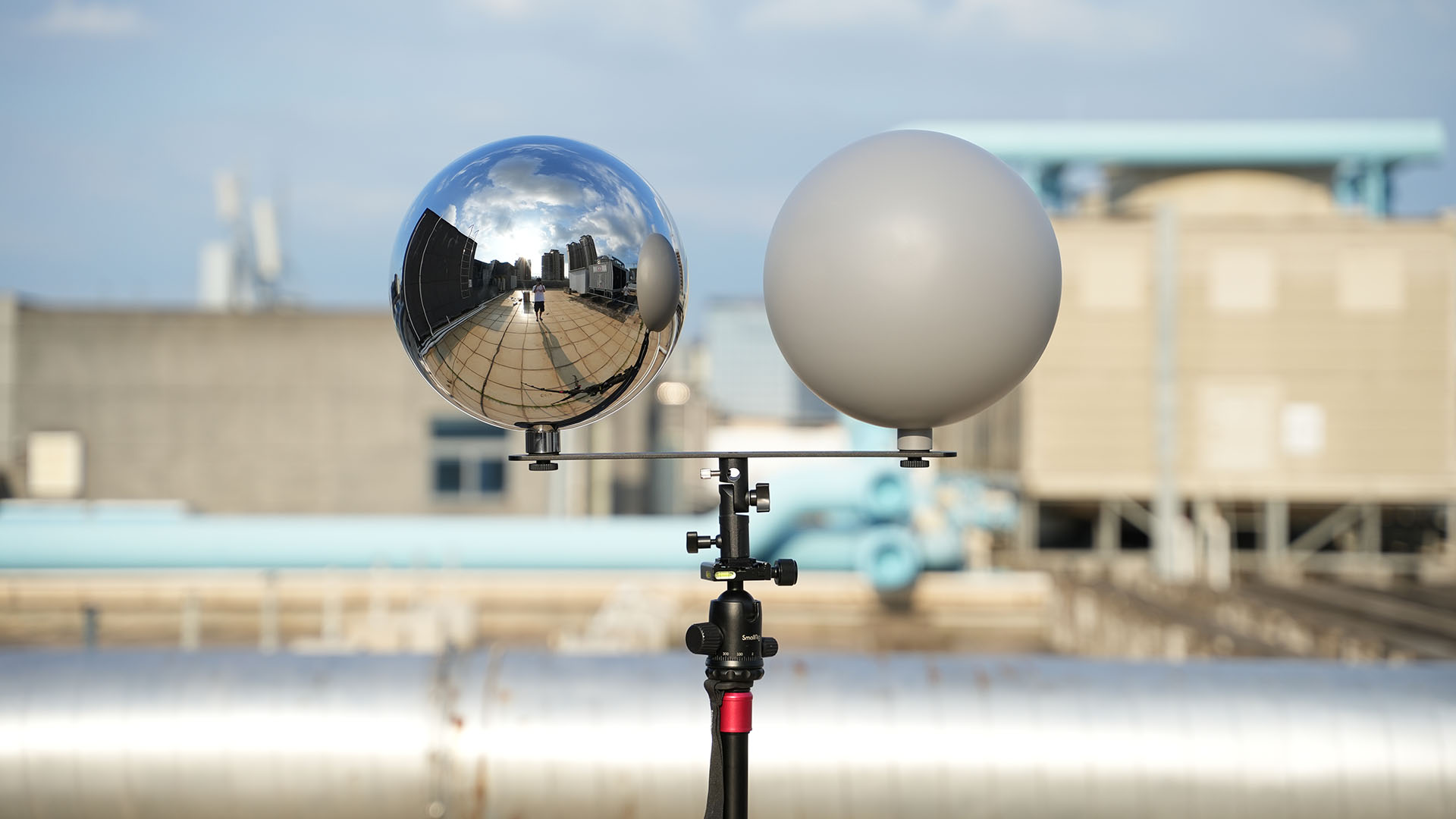

In film and television production, gray balls and chrome balls are commonly used visual reference tools on the set, mainly used to capture lighting and reflection information in the scene. They provide key reference data for the lighting matching of CG (computer graphics) elements in the later stage with the actual shooting scene. The correct use of these two balls can greatly improve the effect of post-synthesis and make the CG elements more naturally integrated with the actual scene.

1. Gray Ball

1. Function of Gray Ball:

The surface of the gray ball is neutral gray, usually 18% gray, which is the standard neutral gray. Its function is to capture the light intensity, brightness and shadow information of the scene. Since gray is not affected by specific colors, it can truly reflect the lighting conditions in the shooting scene.

2. Uses of Gray Ball:

• Lighting correction: Post-production personnel understand the intensity, direction and shadow distribution of the light source on the scene through the brightness changes on the gray ball. In the lighting adjustment of CG elements, refer to the brightness and shadow of the gray ball to match the lighting conditions in the actual shooting scene.
• Exposure control: The neutral gray surface of the gray ball can help adjust the exposure settings to ensure consistent lighting during shooting and post-production.
• Color calibration: Since the gray ball has no color deviation, it can help the post-production team calibrate the white balance and color of the scene when grading to ensure that the color of the CG is consistent with that of the actual shooting scene.

3. How to use the gray ball:

• Every time you shoot a scene with CG elements, first place the gray ball in the shooting area to ensure that the gray ball is in the same lighting environment as the CG elements.
• The photographer shoots the gray ball using the same lens and settings as the formal shooting to record the lighting and exposure information in the scene.
• The gray ball should be re-shot when the position of the scene light source changes to ensure that the lighting changes can be accurately recorded.

2. Chrome Ball

1. Function of the chrome ball:

The surface of the chrome ball is a highly reflective mirror material, usually polished metal or chrome alloy. Its main function is to capture the environmental reflection information in the scene. Through the panoramic reflection of the chrome ball, the post-production team can obtain the reflection data in the environment where the CG elements are located to help simulate the real light reflection effect in the scene.

2. Purpose of Chrome Ball:

• Acquisition of reflection information: The reflective surface of the chrome ball can reflect all the light sources and surroundings of the scene. The post-production team can add realistic reflection effects to CG elements based on the reflection information recorded on the chrome ball, especially for CG objects with reflective properties such as metal and glass.
• Reproduction of ambient lighting: The chrome ball provides a spherical reflection image that can display 360-degree ambient lighting conditions. The CG team can use this data to build a lighting model for the scene, so that CG objects in the virtual environment can present lighting effects that match the real scene.
• HDRI map production: The reflection image of the chrome ball is usually used to generate **HDRI (High Dynamic Range Image)** maps. Post-production personnel can use these HDRI images to provide accurate panoramic lighting for CG scenes.

3. How to use the chrome ball:

• Similar to the gray ball, place the chrome ball in the same position as the CG element or near it to ensure that the sphere can capture the corresponding light source and environment.
• Use the same lens and camera parameters as the formal shooting to record the reflection of the chrome ball and capture a complete environmental reflection image.
• If the scene light source or reflection environment changes, the chrome ball needs to be re-photographed to obtain the latest environmental reflection data.

III. The use of gray ball and chrome ball

1. Timing: Every time you shoot a scene involving CG elements, or whenever the lighting and reflection environment in the scene changes, you need to re-photograph the gray ball and chrome ball.
2. Position: The gray ball and chrome ball should be placed in the area where the CG elements will be placed to ensure that they capture the same lighting and reflection environment as the CG elements.
3. Recording: Use the same shooting equipment, lens and exposure settings to record the gray ball and chrome ball to ensure that the reference information obtained is consistent with the actual shooting.
4. Post-production use: Post-production staff will adjust the lighting, shadows and colors of CG elements based on the lighting and exposure information of the gray ball, and the reflection data of the chrome ball will help them simulate the real environmental reflection effect to ensure that the CG elements are naturally integrated into the shooting scene.

4. Conclusion

Gray and chrome balls provide accurate references for lighting, reflection, and color calibration of CG elements in film and television production. The use of these two balls greatly simplifies the post-compositing process, making the fusion of CG and real scenes more natural and realistic. Every time the scene lighting or reflection environment changes, reshooting the gray and chrome balls ensures that there is enough reference data for post-production to achieve accurate visual effects.

By standardizing the use of gray and chrome balls, film and television production teams can greatly improve the quality of post-production visual effects and ensure that CG elements show realistic visual effects in movie scenes.
